Oppo A11k (CPH2083) Pattern lock remove | Oppo a11k FRP Bypass Umt
Encrypting your link and protect the link from viruses, malware, thief, etc! Made your link safe to visit. Just Wait...
Oppo A11k (CPH2083) Factory reset-Hard reset-Pattern lock remove | Oppo a11k FRP Bypass Umt
Oppo A11k (CPH2083) pattern lock umt oppo a11k hang problem solution/oppo a11k pattern lock umt /oppo a11k hard reset/oppo a11k pattern lock/oppo a11k password unlock/oppo a11k pattern lock remove/oppo a11k factory reset
Oppo A11k Pattern lock remove Umt

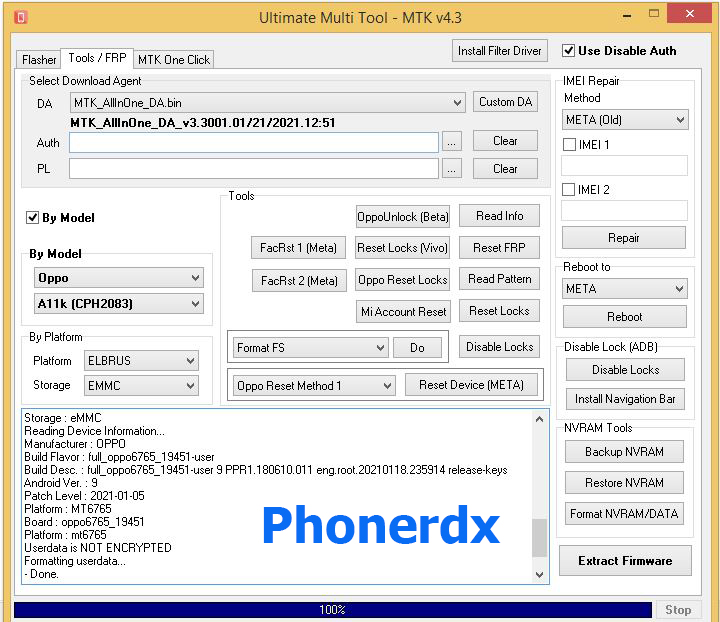

Open UMT Dongle (MTK)
Go to Tab on "Tools / Frp"
Select "Oppo Reset Method 1"
Click on Reset Device (META)
Press and hold Volume Up + Down and Insert USB Cable to Phone
Wait Until Completed
Oppo A11k CPH2083
Brand : Oppo
Model : A11k (CPH2083)
Operation : Format FS
Connection Mode : BROM (Hold Key for BROM Mode)
Hold VOL UP + DOWN and connect USB Cable.
Some phone may have different key combination for BROM mode.
Waiting for device in BROM mode...
Port: COM4
Port Name: MTK USB Port (COM4)
Path: \\?\usb#vid_0e8d&pid_0003#5&b65f817&0&2#{f9f3ff14-ae21-48a0-8a25-8011a7a931d9}
Chipset: 0x0766, [MT6765]
Hardware Info: 0x8A00, 0xCA00, 0x00
SecureBoot: True
SLA: False
DA Auth: True
Disabling WatchDog...
- Success
Sending Payload data...
- Payload sent
Initiating Control Transfer...
- Done
Waiting for result...
Disable Auth Success
Waiting for Phone in Flash Mode...
Connect Power Off phone within 30 secs...
Port : MTK USB Port (COM4)
Connected to BROM.
Sending Download Agent...
connect DA end stage: 2, enable DRAM in 1st DA: 0
Connected to Download Agent..
Syncing with Target...
Reading Partition Table...
Storage : eMMC
Reading Device Information...
Manufacturer : OPPO
Build Flavor : full_oppo6765_19451-user
Build Desc. : full_oppo6765_19451-user 9 PPR1.180610.011 eng.root.20210118.235914 release-keys
Android Ver. : 9
Patch Level : 2021-01-05
Platform : MT6765
Board : oppo6765_19451
Platform : mt6765
Userdata is NOT ENCRYPTED
Formatting userdata...
- Done.
Disconnect Battery/Cable and Power On Phone.
[UltimateMTK Ver. 4.3]
1111
UMT Mtk latest Setup Download Link
UMT Mtk Driver Download Link
Oppo A11k (CPH2083) Factory reset-Hard reset Video
